Temperature Logger

REGTEMPER-DI

PC or NetBook Interface Module to register tens of temperatures of Solar Panels strings and Microinverters for analysis or monitoring .

The supplied Module parts are: Software, Hardware and 10 CHN sensores to be installed in up to 400m CAT5 /RJ45 cabled network over the Solar string pannels installation.

Besides the 10 CHN sensors supplied with the Module, additional sensors can bee purchased separately at exclusive prices for the system owners. Resume

Sensors codes are inserted into the software and after, sensors are connected to the network through RJ45 connectors .

This is ideal for supervision and maintenance, because it gives the possibility of remote monitoring of temperatures over the Internet.

Other applications

- Registration of temperature behavior in the connectors and cables of the broadcasting antennas for Radio and Television, at the moment of installation conclusion for testing at full RF power.
- Research: measurement of sea temperatures at depths up to 400 m, or in tanks and deposits of fluids.
- Ice Cream business: for registration monitoring and alarm of temperatures of refrigeration equipment. Meets the EN12830.(*)
- Chamber for heat treatment of wood measuring, recording and monitoring of temperatures of thermal cameras to kill the pine wood nematode.
- Butchery and Cold rooms for surveillance and alarm temperatures. Meets the EN12830.(*)
- Hypermarkets and small markets that need to record temperatures Arcas, freezers, showcases etc. Meets the EN12830.(*)
- Producers of pools or other tanks with non-corrosive fluids, whose temperature usually must be checked for study of convection currents.
- Laboratories of research and investigation to record the thermal evolution of a slow chemical or physical processes.

- Server rooms
- Manufacturers of industrial machinery, measuring and recording of temperatures at various points of a machine to see the thermal behavior for some periods of time.
- In Civil construction for detailed analysis of the thermal behavior of buildings with regard to indoor air, walls, ceilings and floors, when exposed to certain climatic conditions for extended periods.
- Greenhouse cultivation of plants or animals.

- Aquaculture or Poultry for thermal control/alarm of several incubators.
- Museums or large chemical art painting recover.
- Manufacturers of special thermal systems power management and collectors to record temperatures in many parts of the system.
(*) For the certified models.

Application features

- Does the measurement and record temperatures by year / month / day / hour / minute / second in real time.

- Enables measurements in difficult access locations, where wireless systems can not be installed because the shielding structures of refrigeration equipment reduces the range or, because the space is small.

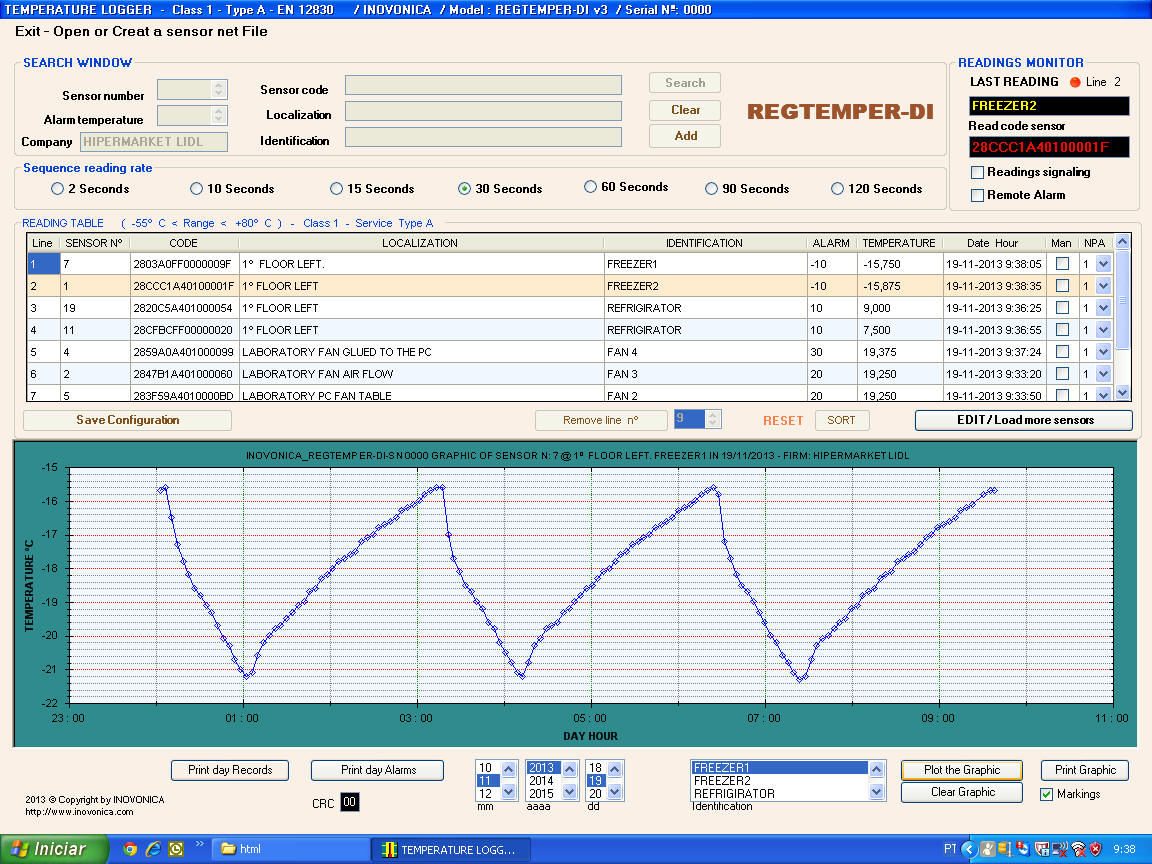

- It records in daily file format for printing Lists or Graphics as the EN12830.

- The USB port of the PC provides the power supply for the interface and to the sensors in the network.

- The system is easy to install, operate and maintain.

- User can easily build the network of sensors using cables (CAT5 or CAT6) with RJ45 plugs and leads.

- Files are recorded daily for each sensor, always starting a new record at 00:00.

- Meets the standard EN12830 for the agri-food Industry.

- The system uses three types of sensors:
        - Sensor CHN sheathed in a 304 stainless steel, for current applications in the agro-food industry, non-corrosive and non-aggressive environments.

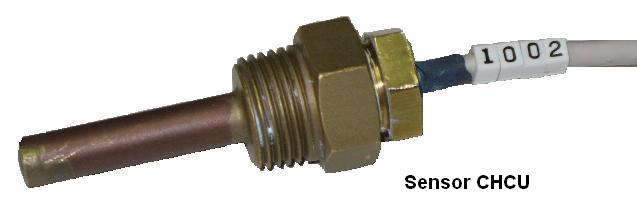

        - Sensor CHCU Copper alloy for industrial machinery, air conditioning in aggressive environments or likely impacts.

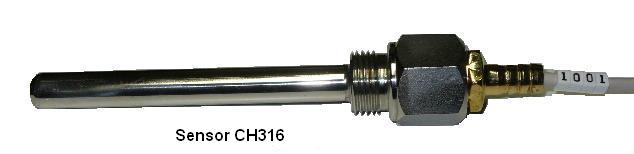

        - Sensor CH316 sheathed in a stainless steel 316 for any application. For example in the agro-food industry where the impact or product movements can occur as in the case of display cabinets, freezers, etc.

Network configurations

- Measurements are made with up to 20 sensors or more per branch of 400 meters.

- Sensors are placed in parallel in the cable at a preferred sapacings .

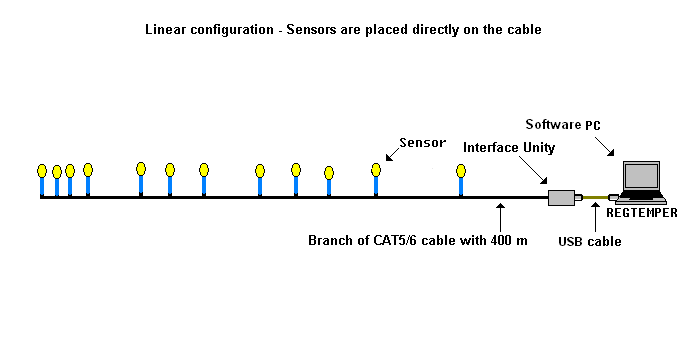

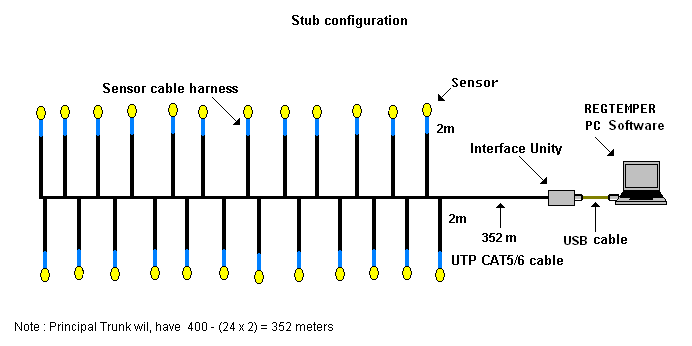

- Configuration of the cable network can be done by the user for the desired conditions as shown in the diagrams.

- For application in food Industry must be used the Certified model for the EN 12830 and HACCP standards

- The network configuration can be changed any time, by adding or removing sensors and save it with same name or, new name.

- One can, therefore, begin the installation with only a few measuring points, acquiring later more sensors..

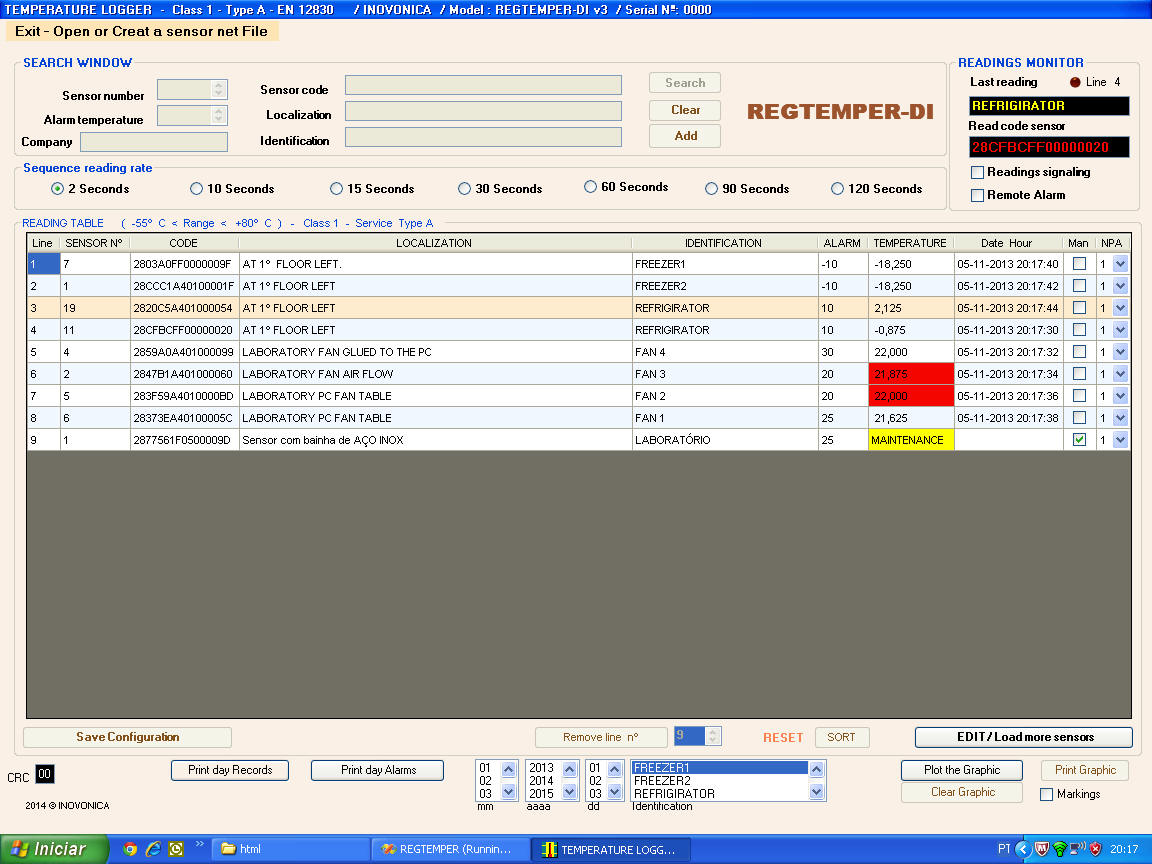

- Some measurements can be jumped putting them in a maintenance status (MAN).This avoids false alarms.

- An audio-visual alarm can bee installed.

Technical features

- System composition : Software + Hardware + 10 CHN sensors with 2 meter CAT5 cable in each with RJ45 male connector.

- Asynchronous Registration: Temperatures are measured one by one at a specified rate (Rhytm).

- Speed of acquisition of the individual measured temperature (Rhythm): The sequencial Rhythm of temperature data acquisition can be selected between 2 seconds to 120 seconds.
- Environment Climate: Type A
- Accuracy Class: Class 1..
- Fitness: S (Storage).
- Response time: 30 seconds with the sensor CHN with 304 stainless steel encapsulation.
- Measuring type: Meets the requirements of section 4.2 of EN 12830 for application in agro-food industry.
- Measurement range: 135K (between -55 ºC and +80 ºC)
- Records : Records are encrypted protected.Impossible to change it.
- Time of Registration of each file: 24 Hours in REGTEMPER-DI model. ( D means Daily Files)
- Error: CRC code detection of Maxim data sensors. It does not allows registrations of incorrect values..

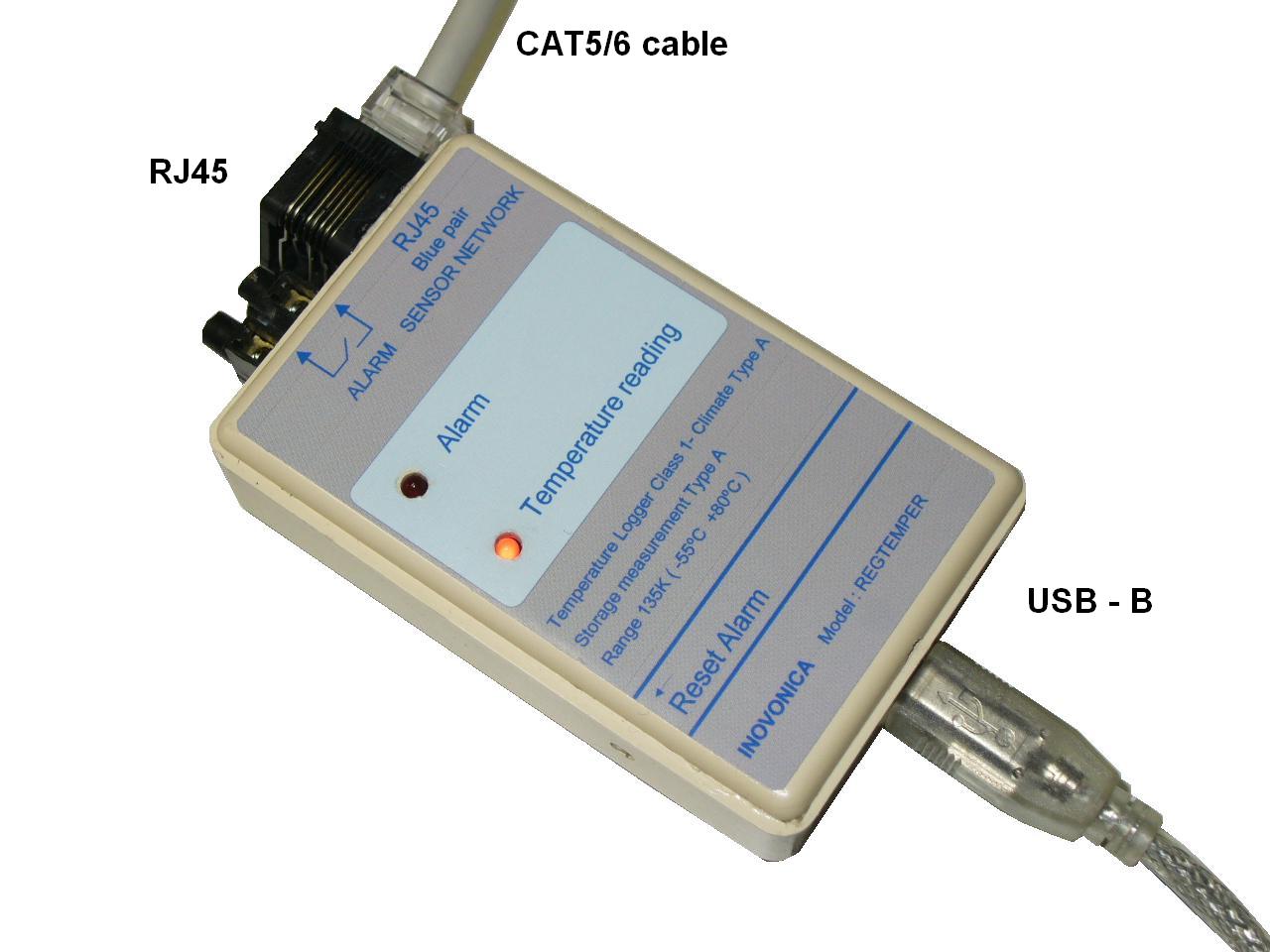

- Interface enclosure : IP54 ABS plastic, to work near the PC .

- Software: .Net and compatible with all monitor resolutions from 800x600 to 1680x1050 for full-screen.

Manual
